Ductless mini-split air conditioners are becoming a popular alternative to traditional central air systems. As homeowners look for energy-efficient, flexible cooling solutions, ductless systems offer a powerful option that doesn’t rely on ductwork. But how exactly do they work?
Let’s break down the operation of a ductless mini-split system and how it delivers cooled air to your living space.
The Core Components of a Ductless System
A ductless mini-split system is made up of three essential parts that work together to provide cooling:
-
Outdoor Unit (Condenser):
This unit is installed outside your home. It houses the compressor, which is responsible for cycling refrigerant through the system. -

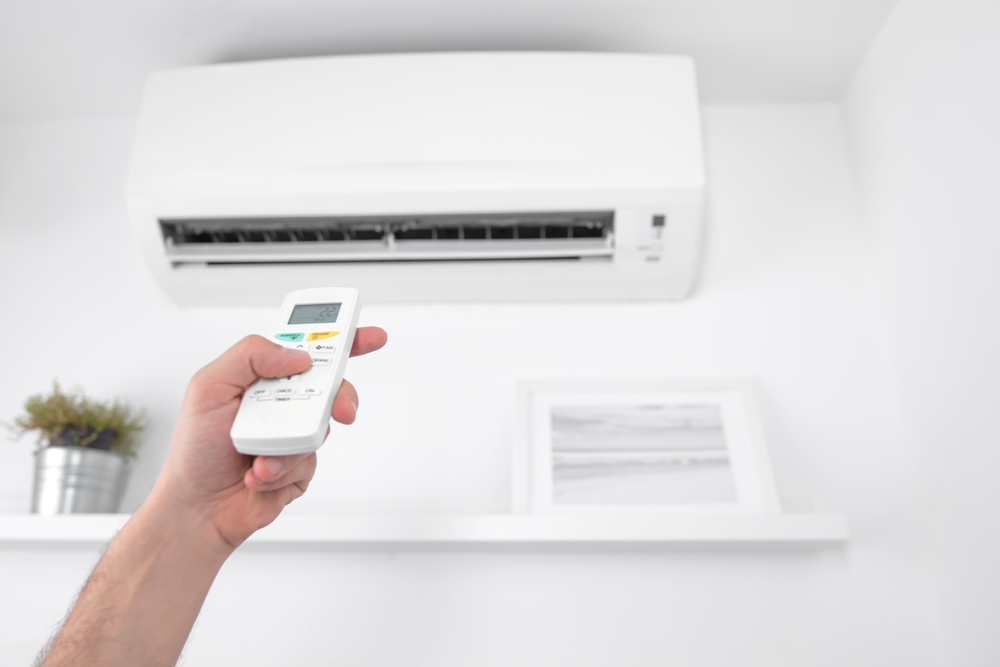

Indoor Unit (Air Handler):
Mounted on the wall or ceiling of the room being cooled, this unit releases the cooled air directly into the space. Each indoor unit typically includes a fan and evaporator coil. -
Refrigerant Line (Conduit):
A slim, insulated line connects the outdoor unit to the indoor unit(s). It carries refrigerant, power, and sometimes drainage, through a small hole in the wall—usually around 3 inches in diameter.
These components work together in a closed loop to remove heat from inside the home and release it outdoors, replacing it with cool, conditioned air.
The Cooling Process: Step by Step
Here’s what happens when your ductless mini-split is cooling a room:
-
Air Intake:
The outdoor unit draws in warm air from the exterior environment. -
Refrigerant Cycle Begins:
The compressor inside the outdoor unit circulates refrigerant through the system. This refrigerant absorbs heat from the indoor air as it flows to the evaporator coil inside the indoor unit. -
Heat Removal:
The refrigerant carries the heat outside, where it’s expelled via the condenser coil in the outdoor unit. -
Cool Air Delivery:
Once the heat has been removed, the cooled refrigerant returns to the indoor unit. A fan blows air over the cold evaporator coil, cooling it before it is released into your room through the indoor unit. -
Temperature Control:
You can control the temperature using a remote control or wall-mounted thermostat, often with options to adjust fan speed, direction, and mode (cooling, heating, dehumidifying, etc.).
Zoned Cooling and Independent Operation
Each indoor unit in a ductless mini-split system operates independently, meaning it only cools the room where it’s installed. If you install units in multiple rooms, they can be controlled separately. This is called zoned cooling and is made possible by the system’s modular design.
The refrigerant lines from all indoor units typically connect to a single outdoor condenser. This allows for flexible configurations and tailored comfort in different areas of the home.
Why No Ducts?
Traditional central air systems use ductwork to distribute air throughout the home. Mini-splits eliminate this step by delivering cooled air directly into each room from the air handler. This direct transfer of cooled air makes the system more efficient and reduces the risk of energy loss from duct leaks or poor insulation.
Because there are no ducts to install or modify, ductless systems are especially ideal for homes without existing ductwork or with structural limitations—such as older homes, additions, or converted garages.
System Control and Features
Most ductless mini-splits come with advanced control options, including:
-
Handheld remotes or wall-mounted thermostats for local control
-
Programmable settings for temperature and timing
-
Smart integrations that allow you to adjust settings from a mobile app or voice assistant
-
Multi-mode operation, including cooling, heating, and dehumidifying
These features give you precise control over your indoor climate with minimal effort.
